Regin

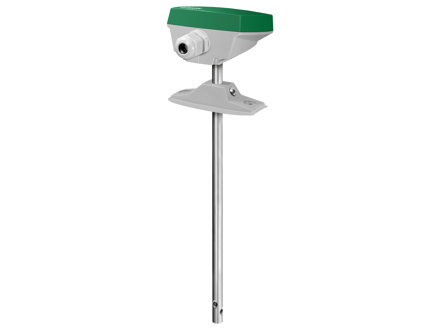

TG-KH3/NI1000-02 Duct sensor with housing
Duct sensor with housing
Specifications
| Sensor element | Ni1000 |
|---|---|
| Nominal resistance | 1000 Ω (0°C) |
| Insertion length | 60...205 mm |
| Equivalent | Sauter |
| Protection class | IP65 |
|---|---|
| Time constant | 16s |
| Measuring range, temperature | -30...+70°C |
| Cable gland | M16 |
| Diameter, probe | 8mm |
| Dimensions, external (WxHxD) | 78 x 263 x 104 mm |
| Material, housing | Polycarbonate (PC) |
| Material, base | Polycarbonate (PC) |
| Material, probe | Stainless steel, SUS304 |
