Accessories for energy meters

Articles

•

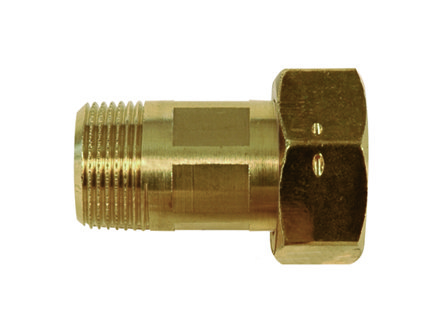

  VSR-1/2

  Brass threaded fitting with coupling ring and gasket

  Compatible with

  Qp 0,6/1,5 m³/h

  Connection A

  G3/4"

  Connection B

  R1/2"

  Meter DN

  15

•
  VSR-3/4

  Brass threaded fitting with coupling ring and gasket

  Compatible with

  Qp 2,5/3,5 m³/h

  Connection A

  G1"

  Connection B

  R3/4"

  Meter DN

  20

•
  VSR-1

  Brass threaded fitting with coupling ring and gasket

  Compatible with

  Qp 3,5/6,0 m³/h

  Connection A

  G1 1/4"

  Connection B

  R1"

  Meter DN

  25

•
  VSR-1 1/2

  Brass threaded fitting with coupling ring and gasket

  Compatible with

  Qp 10 m³/h

  Connection A

  G2"

  Connection B

  R1 1/2"

  Meter DN

  40

•
  KH-3/4

  Ball valve with coupling ring and gasket

  Compatible with

  Qp 0,6/1,5 m³/h

  Connection A

  Rp3/4"

  Connection B

  G3/4"

  Meter DN

  15

•
  KH-1

  Ball valve with coupling ring and gasket

  Compatible with

  Qp 2,5/3,5 m³/h

  Connection A

  Rp1"

  Connection B

  G1"

  Meter DN

  20

•
  KH-1 1/4

  Ball valve with coupling ring and gasket

  Compatible with

  Qp 3,5/6,0 m³/h

  Connection A

  Rp1 1/4"

  Connection B

  G1 1/4"

  Meter DN

  25

•
  KH-2

  Ball valve with coupling ring and gasket

  Compatible with

  Qp 10 m³/h

  Connection A

  Rp2"

  Connection B

  G2"

  Meter DN

  40

•
  KH-S-3/4

  Ball valve with installation point for a temperature sensor (sockets M10x1)

  Compatible with

  Qp 0,6/1,5 m³/h

  Connection A

  G3/4"

  Meter DN

  15

•
  KH-S-1

  Ball valve with installation point for a temperature sensor (sockets M10x1)

  Compatible with

  Qp 2,5/3,5 m³/h

  Connection A

  G1"

  Meter DN

  20

•
  KH-S-1 1/4

  Ball valve with installation point for a temperature sensor (sockets M10x1)

  Compatible with

  Qp 3,5/6,0 m³/h

  Connection A

  G1 1/4"

  Meter DN

  25

•
  KH-S-2

  Ball valve with installation point for a temperature sensor (sockets M10x1)

  Compatible with

  Qp 10 m³/h

  Connection A

  G2"

  Meter DN

  40

•
  VAD-1/2

  Supply flow adapter with gasket, for direct mounting of a temperature sensor in a T-piece

  Connection A

  G1/2"

  Connection B

  M10x1

•
  VAD-3/8

  Supply flow adapter with gasket, for direct mounting of a temperature sensor in a T-piece

  Connection A

  G3/8"

  Connection B

  M10x1

•
  TH-85-1/2

  Temperature sensor pocket for installation of universal temperature sensor with 6 mm sheath diameter

  Compatible with

  q p 3.5…10 m 3 /h

  Connection A

  G½

  Installation length

  85 mm

•
  TH-120-1/2

  Temperature sensor pocket for installation of universal temperature sensor with 6 mm sheath diameter

  Compatible with

  15...100 m³/h

  Connection A

  G1/2"

  Installation length

  120 mm

•
  PS-110-3/4

  Threaded fit

  Compatible with

  Qp 0,6/1,5 m³/h

  Connection A

  G3/4"

  Meter DN

  15

  Installation length

  110 mm

•
  PS-130-1

  Threaded fit

  Compatible with

  Qp 2,5/3,5 m³/h

  Connection A

  G1"

  Meter DN

  20

  Installation length

  130 mm

•
  PS-150-1 1/4

  Compatible with

  qp 3.5/6 m 3 /h

  Connection A

  G1¼

  Installation length

  150 mm

  Meter DN

  25

•
  PS-200-2

  Compatible with

  Qp 10 m³/h

  Connection A

  G2"

  Meter DN

  40

  Installation length

  200 mm

•
  PS-300-2

  Compatible with

  qp 10 m 3 /h

  Connection A

  G2

  Installation length

  300 mm

  Meter DN

  40

•
  OPTO-CABLE-USB

  Optocoupler with USB interface
•
  OPTO-TOOL

  Software device monitor
•
  POWERPACK-EM

  230 V power pack
•
  POWERPACK-EM-24

  24 V AC power pack
•
  BATTERY-EM

  Battery for SSU and SSCU
