Regin

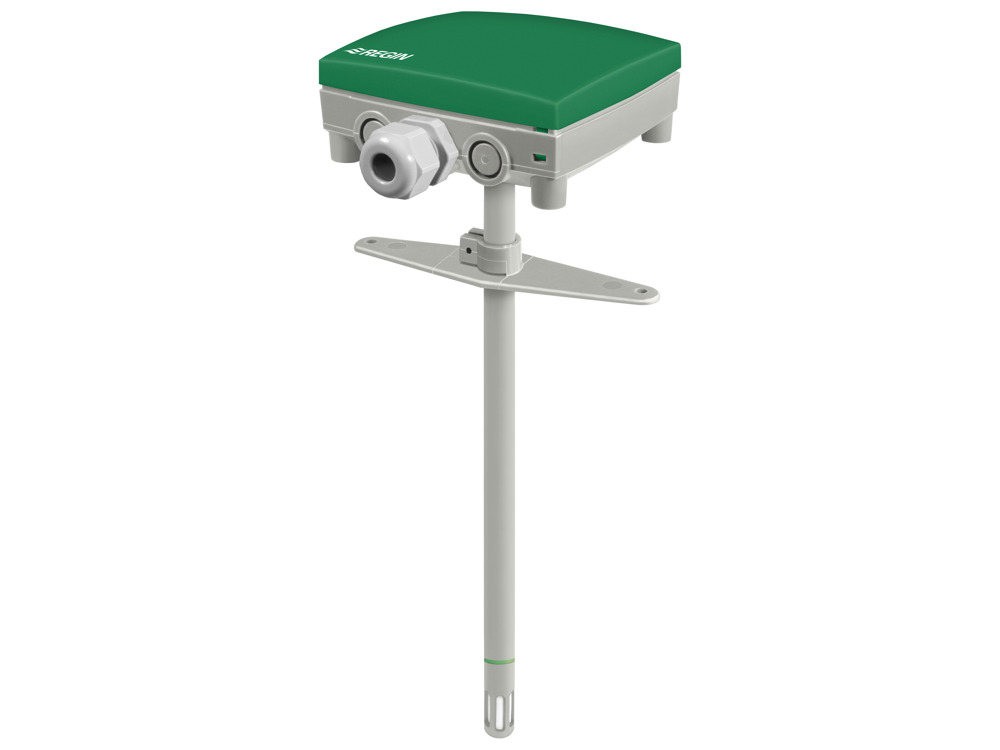

Humidity/temperature transmitter ±2 % RH

This product is discontinued

Transmitters for relative humidity and temperature measurement, resistant to contamination.

Articles

(0 st)

Specifications for Humidity/temperature transmitter ±2 % RH
Supply voltage	24 V AC / 15...35 V DC, 1 VA, 24 V AC ±20 % or 15...35 V DC
Output	0...10 V DC or 4...20 mA*, 0...10 V DC or 4...20 mA and passive PT1000 signal
Working range	Humidity: 0...100 % RH. Temperature: -20...+80°C., Humidity: 10...95 % RH. Temperature: 0...50°C.
Accuracy, humidity	±2 % RH (±3 % at 90...100 % RH), ±2.5 % at 20°C
Accuracy, temperature	±0.2 K at 20°C, ±0.3 K at 20°C
Insertion length	60...230mm
Mounting	Duct, Duct mounting
Protection class	IP65

Product sheet

Instructions
