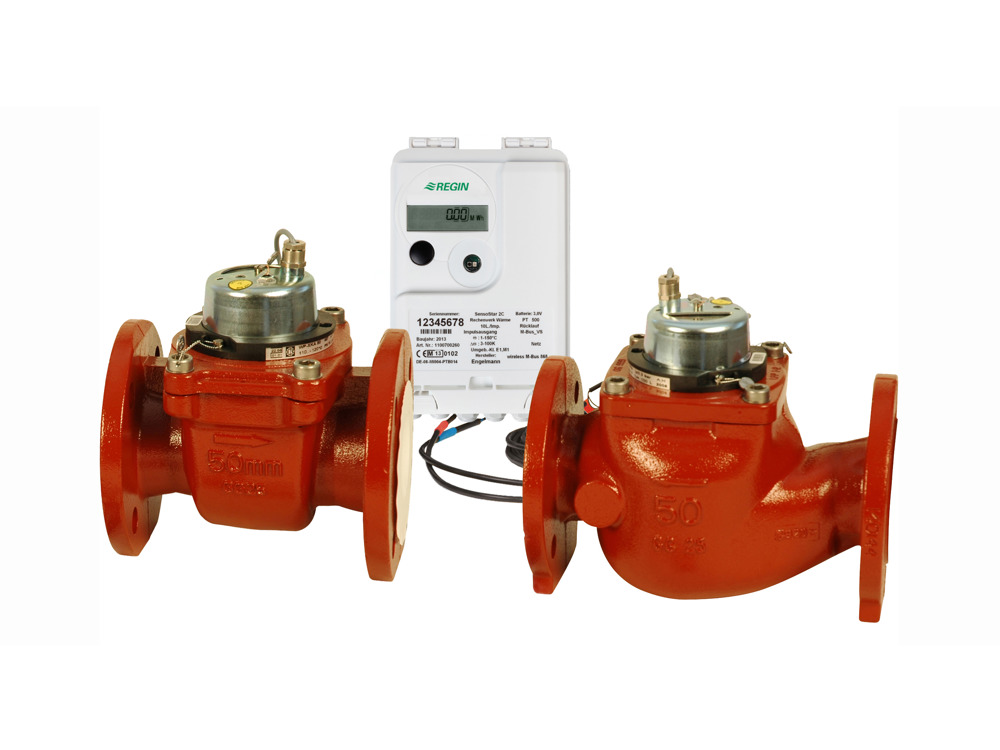

Woltmann type combined energy meter

Flanged Woltmann flow meters for large nominal flows, intended for flow measurements in large plants, such as those found in district heating systems.We offer many different options, see the WSTH/WPTH product sheet for more information.Note: Non-stock item.

Specifications

Software & documentation

Accessories

Articles

(3 st)

WSTH100-60-CR-M

Nominal diameter

DN100

Flow

60 m 3 /h

Type of measurement

Cooling

Communication interface

M-Bus
WSTH100-60-HCR-M

Nominal diameter

DN100

Flow

60 m 3 /h

Type of measurement

Heating and cooling in combination

Communication interface

M-Bus
WSTH100-60-HCR-PO

Nominal diameter

DN100

Flow

60 m 3 /h

Type of measurement

Heating and cooling in combination

Communication interface

Pulse output for energy

Specifications

Specifications for Woltmann type combined energy meter
Power supply	Replaceable 3 V lithium AA battery, min. 6 + 1 years
Temperature range	1...150°C
Temperature resolution	0.01°C
Ambient temperature	5...55°C
Storage temperature	-20…+60°C
Protection class	IP65
Connection	Flanged according to EN 1092-2
Pressure rating	PN16
Media	Water
Mounting position	WSTH horizontal only, WPTH horizontal or vertical
Cable length	3m
Sensor element	PT500; separately approved type as per EN60751, unshielded
Diameter, sensor	6mm
