RDAS 5 Nm

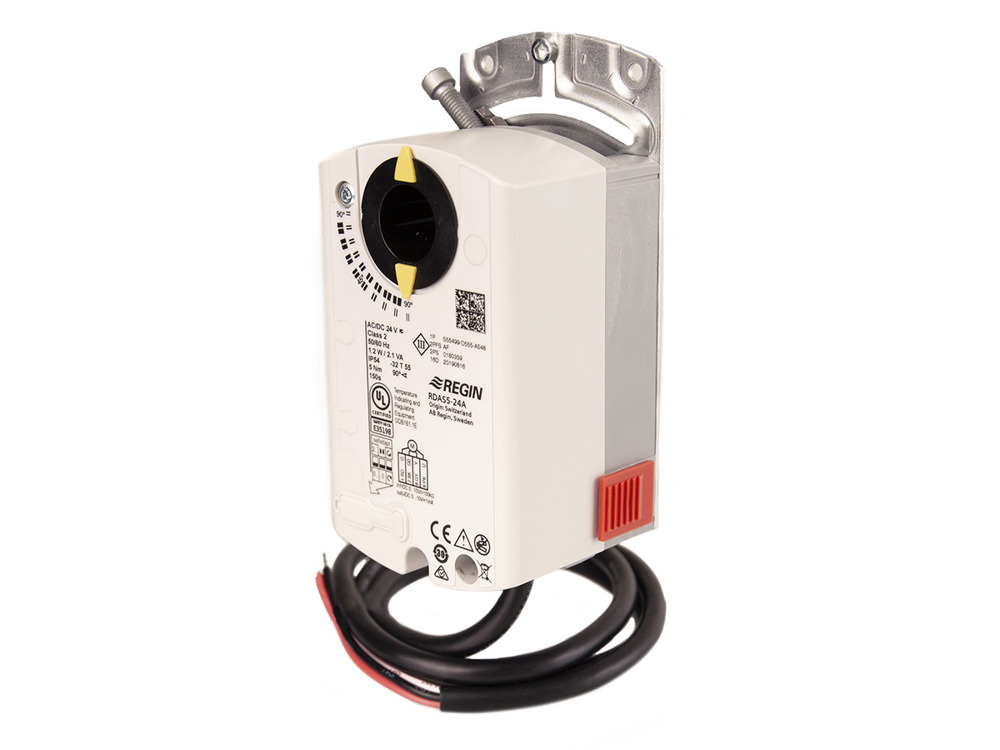

Damper actuator without spring return, 5 Nm. For 2-point (on/off)/3-point or 0…10 V control signal.

Specifications
Software & documentation

Articles

(5 st)
  • RDAS5-230 - Regin
    RDAS5-230
    5 Nm, on/off or 3-point, 230 V
    Supply voltage
    230 V AC
    Power consumption
    5 VA (1.6 W - Running / 0.9 W - Holding)
    Cable length
    0.9 m
    Torque
    5 Nm
    Control signal
    2-point (on/off)/3-point
    Running time, actuator
    150 s
    Auxiliary switch
    No
    Angle limitation
    95 °
    Damper shaft, round
    8…16 mm
    Damper shaft, square
    6…12.8 mm
    Damper shaft, min shaft length
    20 mm
    Max damper size (area)
    0.8 m²
  • RDAS5-230S - Regin
    RDAS5-230S
    5 Nm, on/off or 3-point, 230 V, aux. switch
    Supply voltage
    230 V AC
    Power consumption
    5 VA (1.6 W - Running / 0.9 W - Holding)
    Cable length
    0.9 m
    Torque
    5 Nm
    Control signal
    2-point (on/off)/3-point
    Running time, actuator
    150 s
    Auxiliary switch
    Yes
    Angle limitation
    95 °
    Damper shaft, round
    8…16 mm
    Damper shaft, square
    6…12.8 mm
    Damper shaft, min shaft length
    20 mm
    Max damper size (area)
    0.8 m²
  • RDAS5-24 - Regin
    RDAS5-24
    5 Nm, on/off or 3-point, 24 V
    Supply voltage
    24 V AC/DC
    Power consumption
    2 VA (1 W - Running / 0.5 W - Holding)
    Cable length
    0.9 m
    Torque
    5 Nm
    Control signal
    2-point (on/off)/3-point
    Running time, actuator
    150 s
    Auxiliary switch
    No
    Angle limitation
    95 °
    Damper shaft, round
    8…16 mm
    Damper shaft, square
    6…12.8 mm
    Damper shaft, min shaft length
    20 mm
    Max damper size (area)
    0.8 m²
  • RDAS5-24S - Regin
    RDAS5-24S
    5 Nm, on/off or 3-point, 24 V, aux. switch
    Supply voltage
    24 V AC/DC
    Power consumption
    2 VA (1 W - Running / 0.5 W - Holding)
    Cable length
    0.9 m
    Torque
    5 Nm
    Control signal
    2-point (on/off)/3-point
    Running time, actuator
    150 s
    Auxiliary switch
    Yes
    Angle limitation
    95 °
    Damper shaft, round
    8…16 mm
    Damper shaft, square
    6…12.8 mm
    Damper shaft, min shaft length
    20 mm
    Max damper size (area)
    0.8 m²
  • RDAS5-24A - Regin
    RDAS5-24A
    5 Nm, 0…10 V, 24 V
    Supply voltage
    24 V AC/DC
    Power consumption
    2 VA (1 W - Running / 0.5 W - Holding)
    Cable length
    0.9 m
    Torque
    5 Nm
    Control signal
    0(2)…10 V DC
    Feedback signal
    0...10 V DC
    Running time, actuator
    150 s
    Auxiliary switch
    No
    Angle limitation
    95 °
    Damper shaft, round
    8…16 mm
    Damper shaft, square
    6…12.8 mm
    Damper shaft, min shaft length
    20 mm
    Max damper size (area)
    0.8 m²

Specifications

Specifications for RDAS 5 Nm
Appliance class Class III
Protection class IP54
Ambient humidity (non-condensing) 0…95 % RH
Storage temperature -32…70 °C
Cable nominal cross section 0.75 mm²
Cable length extension, maximum 300 m
Working angle, rotation 90 °
