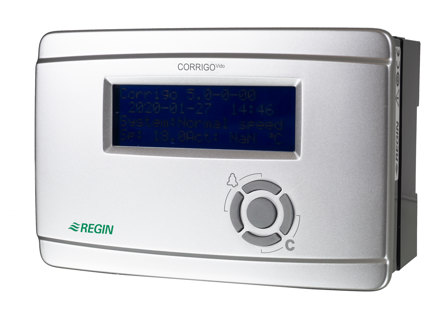

Corrigo Vido 5.0 - configurable 230 V ventilation controller
Corrigo Vido are controllers for ventilation control that make every step from installation to operation and maintenance easier than ever. Simply connect the controller, enter any settings as desired and start up. It can be used either stand-alone or integrated into a network. It has built-in support for many different languages and is designed for mounting on a DIN-rail, in a cabinet door or directly on a wall.
It can be connected to CLOUDigo for the possibility to monitor the system from any location.
Articles
(1 st)-
VCV203DWM-2Corrigo - ventilation controller- Display
- Yes
- Display type
- Backlit (LCD), 4 rows of 20 characters
- Supported protocols
- EXOline, Modbus, BACnet
- RS485 ports
- 1
- Ethernet ports
- 1
- M-Bus ports
- 1
- AI
- 4
- UI
- 4
- DI
- 2
- AO
- 1
- UA
- 2
- DO
- 7
- Number of I/O
- 20
Specifications
| Power Supply | 230VAC (207...253 V AC 50/60Hz / ), 11.0 VA |
|---|---|
| Battery type | CR2032 replacable Lithium cell |
| Battery life time | 5 years |
| Protection class | IP20 |
| Ambient temperature | 0…50 °C |
| Storage temperature | -20…70 °C |
| Mounting | Cabinet, DIN-rail, Wall |
| Dimensions, external (WxHxD) | 147x98x76 mm |
| Analogue inputs type (AI) | PT1000/Ni1000/Ni1000LG/0-10 V |
| Terminal type | Screw Terminal |
| Detachable terminal | Yes |
| Terminal wire size | 1.5 mm² |
| Material, housing | Polycarbonate (PC) |
| Material, base | Polycarbonate (PC) |
Software & documentation
Product sheets
Instructions
Manuals
Product declarations
Configuration tools
Regin
Application tool 2
Configuration software for Regin newer configurable controllers. New controllers always available from cloud…
- Operating system
- Windows 10 or 11 is recommended.
