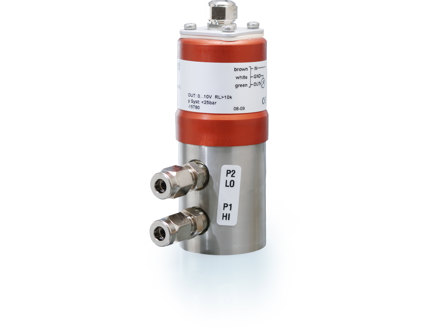

DTK100 Differential pressure transmitter for liquids and gases
Differential pressure transmitter
Specifications
| Mounting | Pipe |
|---|---|
| Power Supply | 24VAC/DC (20...28 V AC 50Hz / 18...33 V DC), 0.1 VA |
| Dimensions, external (WxHxD) | 40x79x mm |
| Analogue output load impedance 0...10v | > 10kOhm |
| Measuring range | 0-100 kPa |
| Max. overload pressure | 500 kPa |
| Max. system pressure | 25 bar |
| Accuracy, resolution sensor | ±1.3 % fs |
| Cabel | Three wire cable, 1.5 m |
| Protection class | IP65 |
|---|---|
| Storage temperature | -15…85 °C |
| Media | liquids and gases |
| Pressure connection | 6 mm for copper tube |
| Dynamic response time | <5 ms |
| Material, housing | Stainless steel |
| Material sensor | Ceramic material |
