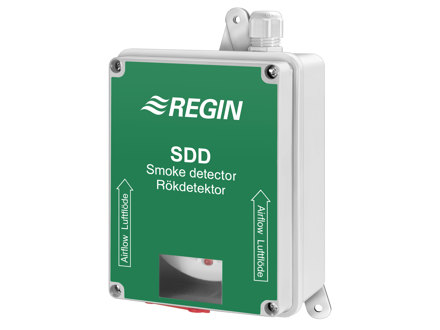

SDD-OE65-RAC Smoke detector for duct mounting, optical
Optical detector with AC power supply and relay output only, with service alarm, including 600 mm Venturi tube.
Specifications
| Power Supply | 24 V AC ±15 % for RAC(M) models. |
|---|---|
| Service alarm | Red LED on detector. Yellow LED on control unit. |
| Current consumption, normal | 10 mA |
| Current consumption during alarm | 50 mA |
| Current consumption during service alarm | 20 mA |
| Relay | Max 24 V AC / 2A or 24 V DC / 1A (Resistive load) |
| End resistor | An end resistor (2,2 kΩ) should be connected to the last detector to end the loop. |
| Protection class | IP54 |
|---|---|
| Ambient humidity (non-condensing) | 5…95 % RH |
| Mounting | Duct |
| Wind speed | Up to 20 m/s |
| Smoke alarm | Red LED |
